器具類〔All Benchtop Devices〕

メーカー名:ADSANTEC

製品仕様

Product Specifications

ModelData sheetFunctionFreq (min)Freq (max)PowerPackage

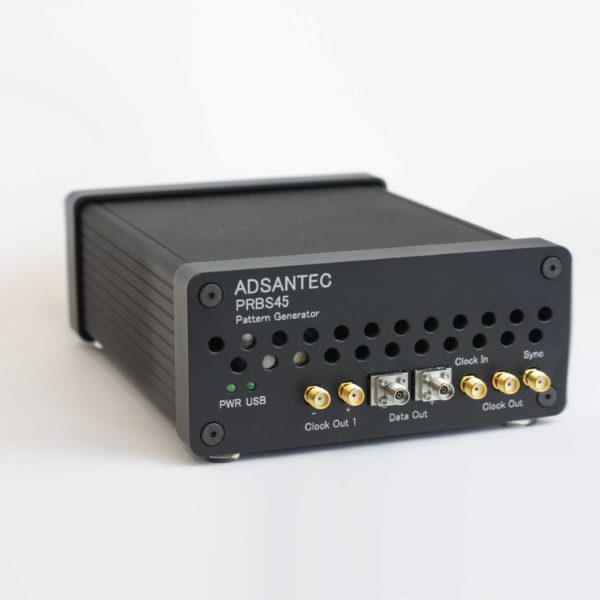

ASNT_PRBS45DatasheetPRBS7 to PRBS31 Pattern Generator with USB Control Interface100Mbps45Gbps21250 mWBenchtop
ASNT_ED45_2CHDatasheet2 Channel PRBS Error Detector with USB Control Interface1 Gbps33.5 Gbps23800 mWBenchtop
ASNT_FS8151DatasheetFrequency Synthesizer with USB Control Interface4 GHz32 GHz15000 mWBenchtop
ASNT_PRBS43ADatasheet27-1 / 215-1 PRBS Generator with USB Control Interface and on-board PLL10 kbps48 Gbps20000 mWBenchtop
ASNT_MUX64DatasheetHigh Speed 2:1 Multiplexer Unit w/ USB Control InterfaceDC64 Gbps15000 mWBenchtop
ASNT6118-MODDatasheetModular Advanced Driver / Amplifier with Digital Pre-Emphasis, PAM4 Encoding, and less than 200fs p-p Jitter1.0 Gbps32.5 Gbps10000 mWBenchtop
ASNT_MPSGDatasheet4 Channel 0.1 to 40Gbps PRBS Generator with USB Control Interface100 Mbps40 Gbps15000Benchtop
ASNT_6901-MODDatasheetPAM4 Data Generator with USB Control Interface1 Gbaud64 Gbaud130 WBenchtop
ASNT_6902-MODDatasheetPAM4 Data Generator with USB Control Interface1 Gbaud56 Gbaud22.5 WBenchtop
ASNT_6900-MODDatasheetPAM4 Data Decombiner with USB Control Interface1 Gbaud64 GbaudTBDBenchtop
ASNT_DMUX64DatasheetHigh Speed 1:2 Demultiplexer Unit w/ USB Control InterfaceDC64 Gbps800 mWBenchtop
ASNT9001-JIDatasheetAdvanced Jitter Generation/Insertion Module w/ USB Control InterfaceDC29 GHz16000Board / Benchtop
ASNT_ED45A_2CHDatasheet2 Channel PRBS Error Detector with USB Control Interface1 Gbps45 Gbps23800 mWBenchtop

備考

Remarks

お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
