Active Frequency Multipliers

メーカー名:Eravant
multiplier > Frequency Multipliers

製品仕様

Product Specifications

modelData sheetMinimum Output Frequency [GHz]Maximum Output Frequency [GHz]Output Power [dBm]Minimum Input Frequency [GHz]Maximum Input Frequency [GHz]Input Power [dBm]DC Bias [VDC/ mA]Output PortInput Port
SFA-203403213-KFSF-S1Datasheet2040+131020+5+8 / 300K (F)SMA (F)
SFA-203403216-KFSF-S1Datasheet2040+161020+5+8 / 300K (F)SMA (F)
SFA-203403220-KFSF-S1Datasheet2040+201020+5+8 / 450K (F)SMA (F)
SFA-203403226-KFSF-S1Datasheet2040+261020+5+8 / 1200K (F)SMA (F)
SFA-203403229-KFSF-S1Datasheet2040+291020+5+8 / 1800K (F)SMA (F)
SFA-203403205-KFSF-S1Datasheet2040+51020+5+8 / 180K (F)SMA (F)
SFA-203503410-2FSF-S1Datasheet2050+10512.5+5+8 / 5002.4 mm (F)SMA (F)
SFA-243423226-28SF-E1Datasheet2442+261221+5+8 / 1200WR-28 Uni-Guide? WGSMA (F)
SFA-282SF-E1Datasheet26.540+2013.2520+5+8 / 420WR-28 Uni-Guide? WGSMA (F)
SFA-284SF-E1Datasheet26.540+206.6310+5+8 / 300WR-28 Uni-Guide? WGSMA (F)
SFA-282SF-S1Datasheet26.540+2013.2520+5+8 / 420WR-28 WGSMA (F)
SFA-284SF-S1Datasheet26.540+206.6310+5+8 / 300WR-28 WGSMA (F)
SFA-283323318-28SF-E1Datasheet2832+189.3310.66+10+8 / 350WR-28 Uni-Guide? WGSMA (F)
SFA-283323318-28SF-S1Datasheet2832+189.3310.66+10+8 / 350WR-28 WGSMA (F)
SFA-373453220-22KF-S1Datasheet3347+2016.523.5+5+8 / 500WR-22 WG2.92 mm (F)
SFA-222KF-E1Datasheet3350+2012.5250+8 / 750WR-22 Uni-Guide? WG2.92 mm (F)
SFA-224SF-E1Datasheet3350+208.2512.5+5+8 / 1000WR-22 Uni-Guide? WGSMA (F)
SFA-222KF-S1Datasheet3350+2016.5250+8 / 850WR-22 WG2.92 mm (F)
SFA-224SF-S1Datasheet3350+208.2512.5+5+8 / 1000WR-22 WGSMA (F)
SFA-363603418-19SF-E1Datasheet3660+189150+8 / 800WR-19 Uni-Guide? WGSMA (F)
SFA-363603418-19SF-S1Datasheet3660+189150+8 / 800WR-19 WGSMA (F)
SFA-403603215-VMKF-S1Datasheet4060+152030+5+8 / 400V (M)K (F)
SFA-192KF-E1Datasheet4060+182030+5+8 / 750WR-19 Uni-Guide? WG2.92 mm (F)
SFA-194SF-E1Datasheet4060+1810150+8 / 800WR-19 Uni-Guide? WGSMA (F)
SFA-192KF-S1Datasheet4060+182030+5+8 / 750WR-19 WG2.92 mm (F)
SFA-194SF-S1Datasheet4060+1810150+8 / 800WR-19 WGSMA (F)
SFA-403703413-VFSF-S1Datasheet4070+131017.50+8 / 800V (F)SMA (F)
SFA-403703416-VFSF-S1Datasheet4070+161017.50+8 / 800V (F)SMA (F)
SFA-453703413-15SF-E1Datasheet4570+1311.2517.5+5+8 / 600WR-15 WGSMA (F)
SFA-453703413-15SF-S1Datasheet4570+1311.2517.5+5+8 / 600WR-15 WGSMA (F)

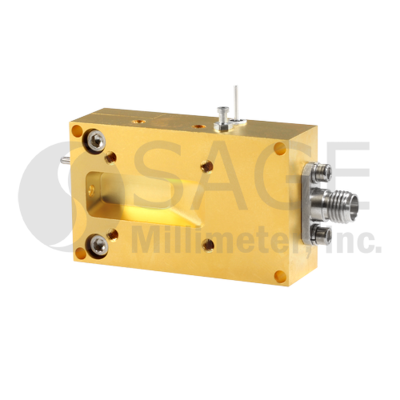

SFA-453703416-15SF-E1Datasheet4570+1611.2517.5+5+8 / 600WR-15 WGSMA (F)
SFA-453703416-15SF-S1Datasheet4570+1611.2517.5+5+8 / 600WR-15 WGSMA (F)
SFA-503703220-15KF-S1Datasheet5070+202535+5+8 / 800WR-15 WGK (F)
SFA-503753413-15SF-E1Datasheet5075+1312.518.75+3+8 / 550WR-15 WGSMA (F)
SFA-503753413-15KF-E1Datasheet5075+1312.518.75+3+8 / 400WR-15 WG2.92 mm (F)
SFA-503753413-15KF-S1Datasheet5075+1312.518.75+3+8 / 400WR-15 WG2.92 mm (F)
SFA-503753413-15SF-S1Datasheet5075+1312.518.75+3+8 / 550WR-15 WGSMA (F)
SFA-503753416-15SF-E1Datasheet5075+1612.518.75+3+8 / 550WR-15 WGSMA (F)
SFA-503753416-15KF-E1Datasheet5075+1612.518.75+3+8 / 400WR-15 WG2.92 mm (F)
SFA-503753416-15KF-S1Datasheet5075+1612.518.75+3+8 / 400WR-15 WG2.92 mm (F)
SFA-503753416-15SF-S1Datasheet5075+1612.518.75+3+8 / 550WR-15 WGSMA (F)
SFA-503753420-15SF-E1Datasheet5075+2012.518.75+3+8 / 770WR-15 WGSMA (F)
SFA-503773413-15SF-S1Datasheet5077+1312.519.25+5+8 / 550WR-15 WGSMA (F)
SFA-503773416-15SF-S1Datasheet5077+1612.519.25+5+8 / 550WR-15 WGSMA (F)
SFA-543663423-15SF-E1Datasheet5466+2313.516.50+8 / 1150WR-15 WGSMA (F)
SFA-543663223-15KF-S1Datasheet5466+232733+5+8 / 800WR-15 WG2.92 mm (F)
SFA-553653418-15KF-S1Datasheet5565+1813.7516.25+5+8 / 600WR-15 WG2.92 mm (F)
SFA-553863814-15SF-E1Datasheet5586+146.87510.75+3+8 / 400WR-15 WGSMA (F)
SFA-553863814-15SF-S1Datasheet5586+146.87510.75+3+8 / 400WR-15 WGSMA (F)
SFA-553903613-12SF-E1Datasheet5590+139.1715+3+8 / 350WR-12 WGSMA (F)
SFA-553903613-12SF-S1Datasheet5590+139.1715+3+8 / 350WR-12 WGSMA (F)
SFA-553903616-12SF-E1Datasheet5590+169.1715+3+8 / 350WR-12 WGSMA (F)
SFA-553903616-12SF-S1Datasheet5590+169.1715+3+8 / 350WR-12 WGSMA (F)
SFA-603903213-12VF-E1Datasheet6090+133045+3+8 / 400WR-12 WG1.85 mm (F)
SFA-603903313-12KF-E1Datasheet6090+132030+3+8 / 400WR-12 WG2.92 mm (F)
SFA-603903413-12KF-E1Datasheet6090+131522.5+3+8 / 500WR-12 WG2.92 mm (F)
SFA-603903613-12SF-E1Datasheet6090+131015+3+8 / 650WR-12 WGSMA (F)
SFA-603903813-12SF-E1Datasheet6090+137.511.25+4+8 / 600WR-12 WGSMA (F)
SFA-603903213-12VF-S1Datasheet6090+133045+3+8 / 400WR-12 WG1.85 mm (F)
SFA-603903313-12KF-S1Datasheet6090+132030+3+8 / 400WR-12 WG2.92 mm (F)
SFA-603903413-12KF-S1Datasheet6090+131522.5+3+8 / 500WR-12 WG2.92 mm (F)
SFA-603903613-12SF-S1Datasheet6090+131015+3+8 / 650WR-12 WGSMA (F)
SFA-603903813-12SF-S1Datasheet6090+137.511.25+4+8 / 600WR-12 WGSMA (F)
SFA-603903216-12VF-E1Datasheet6090+163045+3+8 / 400WR-12 WG1.85 mm (F)
SFA-603903316-12KF-E1Datasheet6090+162030+3+8 / 400WR-12 WG2.92 mm (F)
SFA-603903416-12KF-E1Datasheet6090+161522.5+3+8 / 500WR-12 WG2.92 mm (F)
SFA-603903616-12SF-E1Datasheet6090+161015+3+8 / 650WR-12 WGSMA (F)
SFA-603903816-12SF-E1Datasheet6090+167.511.25+4+8 / 600WR-12 WGSMA (F)
SFA-603903216-12VF-S1Datasheet6090+163045+3+8 / 400WR-12 WG1.85 mm (F)
SFA-603903316-12KF-S1Datasheet6090+162030+3+8 / 400WR-12 WG2.92 mm (F)
SFA-603903416-12KF-S1Datasheet6090+161522.5+3+8 / 500WR-12 WG2.92 mm (F)
SFA-603903616-12SF-S1Datasheet6090+161015+3+8 / 650WR-12 WGSMA (F)
SFA-603903816-12SF-S1Datasheet6090+167.511.25+4+8 / 600WR-12 WGSMA (F)
SFA-603903220-12VF-E1Datasheet6090+203045+3+8 / 600WR-12 WG1.85 mm (F)
SFA-603903320-12KF-E1Datasheet6090+202030+3+8 / 600WR-12 WG2.92 mm (F)
SFA-603903420-12KF-E1Datasheet6090+201522.5+3+8 / 800WR-12 WG2.92 mm (F)
SFA-603903620-12SF-E1Datasheet6090+201015+3+8 / 850WR-12 WGSMA (F)
SFA-603903820-12SF-E1Datasheet6090+207.511.25+4+8 / 800WR-12 WGSMA (F)
SFA-603903220-12VF-S1Datasheet6090+203045+3+8 / 600WR-12 WG1.85 mm (F)
SFA-603903320-12KF-S1Datasheet6090+202030+3+8 / 600WR-12 WG2.92 mm (F)
SFA-603903420-12KF-S1Datasheet6090+201522.5+3+8 / 800WR-12 WG2.92 mm (F)
SFA-603903620-12SF-S1Datasheet6090+201015+3+8 / 850WR-12 WGSMA (F)
SFA-603903820-12SF-S1Datasheet6090+207.511.25+4+8 / 800WR-12 WGSMA (F)
SFA-653803422-12KF-E1Datasheet6580+2216.2520+5+8 / 1100WR-12 WG2.92 mm (F)
SFA-703763628-12SF-E1Datasheet7076+2811.6612.67+5+8 / 1300WR-12 WGSMA (F)
SFA-703863610-12SF-E1Datasheet7086+1011.6614.330+8 / 280WR-12 WGSMA (F)
SFA-703863610-12SF-S1Datasheet7086+1011.6614.330+8 / 280WR-12 WGSMA (F)
SFA-713863820-12SF-S1Datasheet7186+208.87510.750+8 / 1200WR-12 WGSMA (F)
SFA-723903312-12KF-S1Datasheet7290+122430+3+8 / 240WR-12 WG2.92 mm (F)
SFA-753114613-10SF-E1Datasheet75110+1312.518.3+3+13 / 550WR-10 WGSMA (F)
SFA-753114616-10SF-E1Datasheet75110+1612.518.3+3+13 / 550WR-10 WGSMA (F)
SFA-753114616-10SF-E1-1Datasheet75113+1612.518.83+3+15 / 550WR-10 WGSMA (F)
SFA-753863224-12VF-E1Datasheet7586+2437.543+5+8 / 1000WR-12 WG1.85 mm (F)
SFA-753863424-12KF-E1Datasheet7586+2418.7521.5+3+8 / 1200WR-12 WG2.92 mm (F)
SFA-753863624-12SF-E1Datasheet7586+2412.514.3+5+8 / 1300WR-12 WGSMA (F)
SFA-783983613-10SF-E1Datasheet7898+131316.33+5+8 / 750WR-10 WGSMA (F)
SFA-783983616-10SF-E1Datasheet7898+161316.33+5+8 / 750WR-10 WGSMA (F)
SFA-783983616-10SF-S1Datasheet7898+161316.33+5+8 / 750WR-10 WGSMA (F)
SFA-803104813-10SF-E1Datasheet80100+131013.750+15 / 400WR-10 WGSMA (F)
SFA-803104813-10SF-S1Datasheet80100+131013.750+15 / 400WR-10 WGSMA (F)
SFA-803104816-10SF-E1Datasheet80100+161013.750+15 / 400WR-10 WGSMA (F)
SFA-803104816-10SF-S1Datasheet80100+161013.750+15 / 400WR-10 WGSMA (F)
SFA-803863628-12SF-E1Datasheet8086+2813.3314.34+5+8 / 1300WR-12 WGSMA (F)
SFA-8431041213-10SF-E1Datasheet84100+1378.333+5+8 / 400WR-10 WGSMA (F)
SFA-8431041213-10SF-S1Datasheet84100+1378.333+5+8 / 400WR-10 WGSMA (F)
SFA-8431041216-10SF-E1Datasheet84100+1678.333+5+8 / 400WR-10 WGSMA (F)
SFA-8431041216-10SF-S1Datasheet84100+1678.333+5+8 / 400WR-10 WGSMA (F)
SFA-843104810-10SF-E1Datasheet84104+1010.513+3+8 / 400WR-10 WGSMA (F)
SFA-843104810-10SF-S1Datasheet84104+1010.513+3+8 / 400WR-10 WGSMA (F)
SFA-843114810-10SF-S1Datasheet84106+101013.750+8 / 450WR-10 WGSMA (F)
SFA-903983810-10SF-E1Datasheet9098+1011.2512.25+5+8 / 450WR-10 WGSMA (F)
SFA-903983618-10SF-E1Datasheet9098+181516.33+5+8 / 750WR-10 WGSMA (F)
SFA-903983818-10SF-E1Datasheet9098+1811.2512.25+5+8 / 850WR-10 WGSMA (F)
SFA-903983618-10SF-S1Datasheet9098+181516.33+5+8 / 750WR-10 WGSMA (F)
SFA-903983818-10SF-S1Datasheet9098+1811.2512.25+5+8 / 850WR-10 WGSMA (F)
SFA-903983826-10SF-E1Datasheet9098+2611.2512.25+5+15 / 750WR-10 WGSMA (F)
SFA-923963820-10SF-E1Datasheet9296+2011.512+5+8 / 850WR-10 WGSMA (F)
SFA-923963820-10SF-S1Datasheet9296+2011.512+5+8 / 850WR-10 WGSMA (F)
