2nd Harmonic Mixers

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum RF Frequency [GHz]Maximum RF Frequency [GHz]Minimum LO Frequency [GHz]Maximum LO Frequency [GHz]Minimum IF Frequency [GHz]Maximum IF Frequency [GHz]LO Pumping Power [dBm]Conversion Loss [dB]RF Port

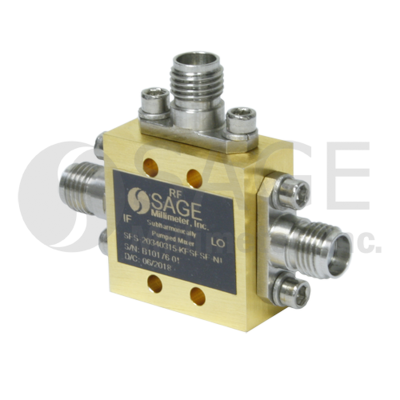

SFS-18340315-KFSFSF-N1-MDatasheet184092012+13152.92 mm (F)
SFS-27340315-28SFSF-N1-MDatasheet26.54013.252012+1315WR-28 Waveguide
SFS-19-N3Datasheet40602030DC5+1514WR-19 Waveguide

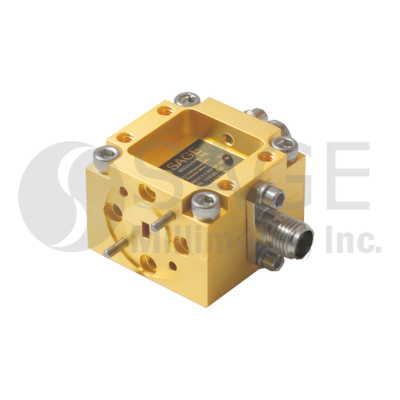

SFS-60390314-12KFSF-N1-MDatasheet60903045DC5+914WR-12 Waveguide
SFS-90311415-102FSF-N3Datasheet901004550DC5+1515WR-10 Waveguide

備考

Remarks
